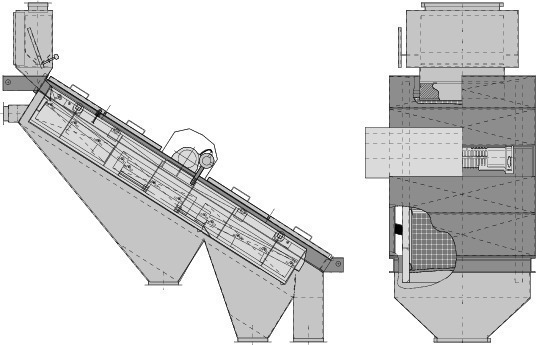

Fine screening machines from Derrick for wet and dry screening in the sand and gravel industry

Summary: It was interesting to witness the development of wet and dry screening of
fine materials in the last few years. Today, screening machines have become established

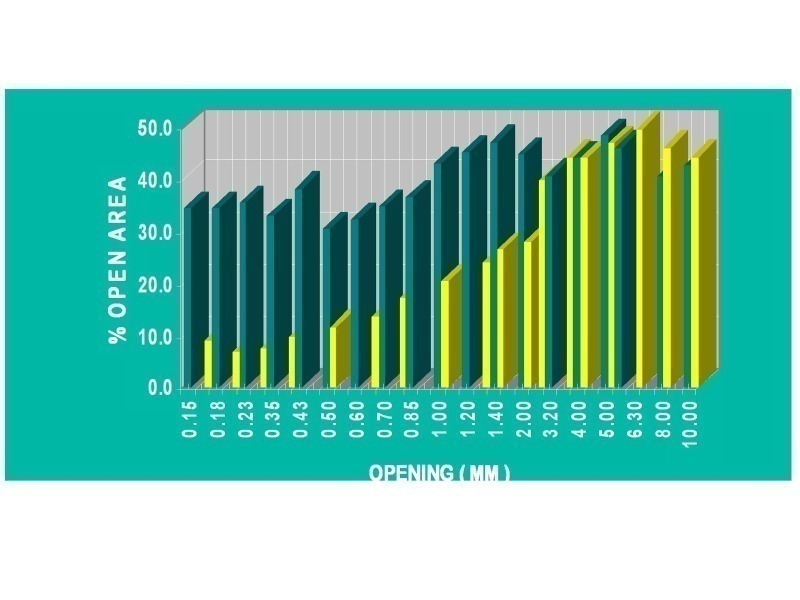

in mineral processing fields, which in the past were the exclusive domain of hydraulic ­classifiers and separators. Screens are used together with cyclones and hydraulic classifiers or to complement them. Fine screens are installed to retrofit existing plants for the im­provement of screening efficiency. The development in the field of screening surfaces has advanced at high speed. Finer and finer screen cloths with higher open areas and longer life are offered on the market. Fine screening, often unrecognized and ridiculed, has become a high-tech process, which has become established more and more in the sand and mineral industries, as the following article will show.

1 General development

Screening of granular materials is as old as mankind. Already early Egyptian drawings show the screening of grain and salt in the dim and distant past. The development of the screening practice is closely connected with the history of technology. At the beginning, the screens with nettings of wood, bamboo or grass were mainly moved by hand. Then industrial screening, as described by Agricola, first developed rapidly to become a basic process in mining during the Middle Ages. The development of the screening machines themselves went hand in hand with a continuous...
