Mobile jaw crusher BR380JG-3
17.10.2022Komatsu Europe will be presenting its CO2-neutral BR380JG-3 mobile crusher with EU Stage V emissions compliant diesel engine in action at bauma 2022. To meet Komatsu’s commitment to a cleaner environment and increasing demands from customers to reduce CO2 emissions, the BR380JG-3 comes with a unique CO2 off settingscheme, which is applied to each and every one sold in Europe. “The new BR380JG-3 is Komatsu’s first diesel powered machine in Europe with Net Zero CO2 emissions.” says Vince Porteous, Product Manager at Komatsu Europe.

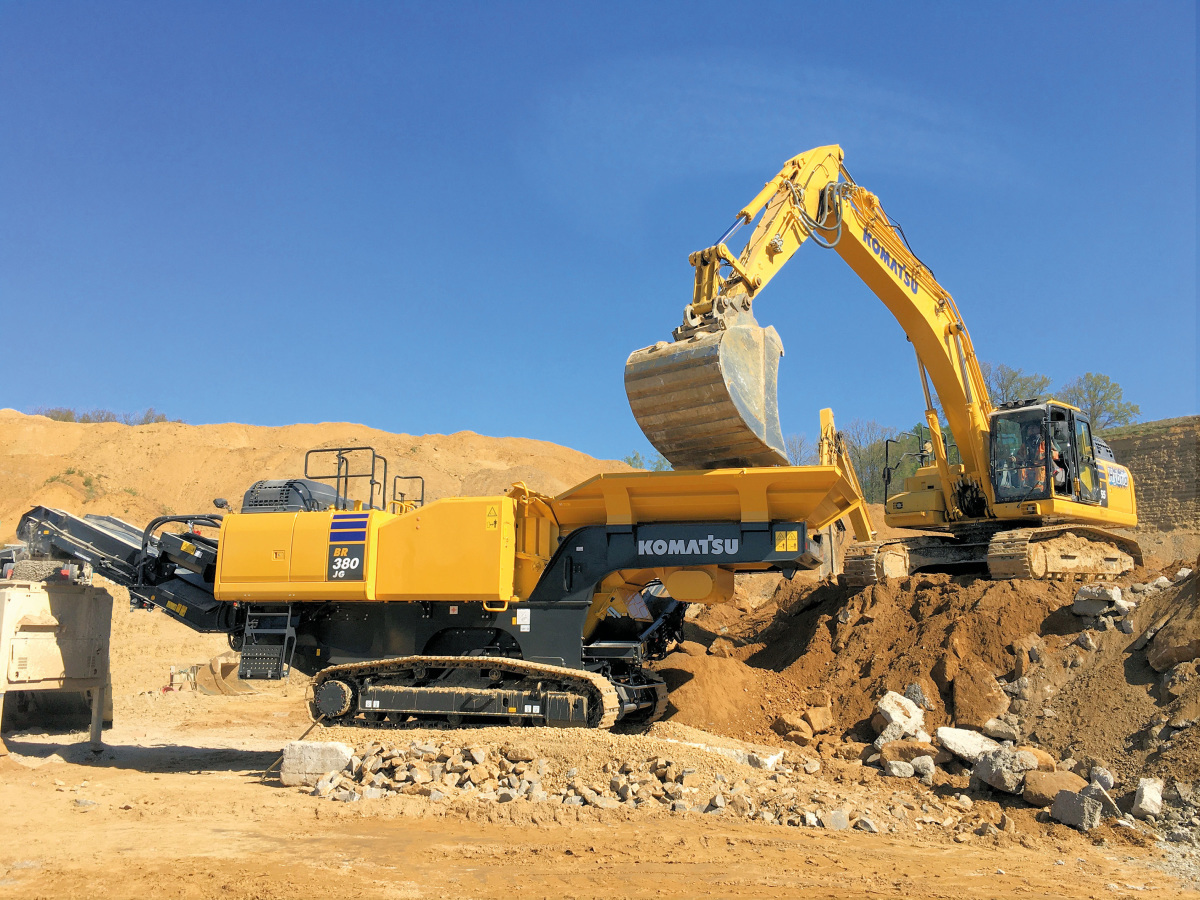

Komatsu’s new CO2-neutral BR380JG-3 mobile crusher with EU Stage V emissions compliant diesel engine
© Komatsu
The operating weight of the BR380JG-3 ranges from 33 500 to 35 310 kg, with a maximum crushing capacity of 240 t/h. The fuel efficient, EU Stage V Komatsu engine has a power output of 159 kW/213 HP at 2050 rpm. The latest Komtrax telematics, and the Komatsu Care maintenance program for customers, offer top fleet management and support, protect the machine against misuse and guarantee maximum efficiency and uptime.
The operating weight of the BR380JG-3 ranges from 33 500 to 35 310 kg, with a maximum crushing capacity of 240 t/h
© Komatsu

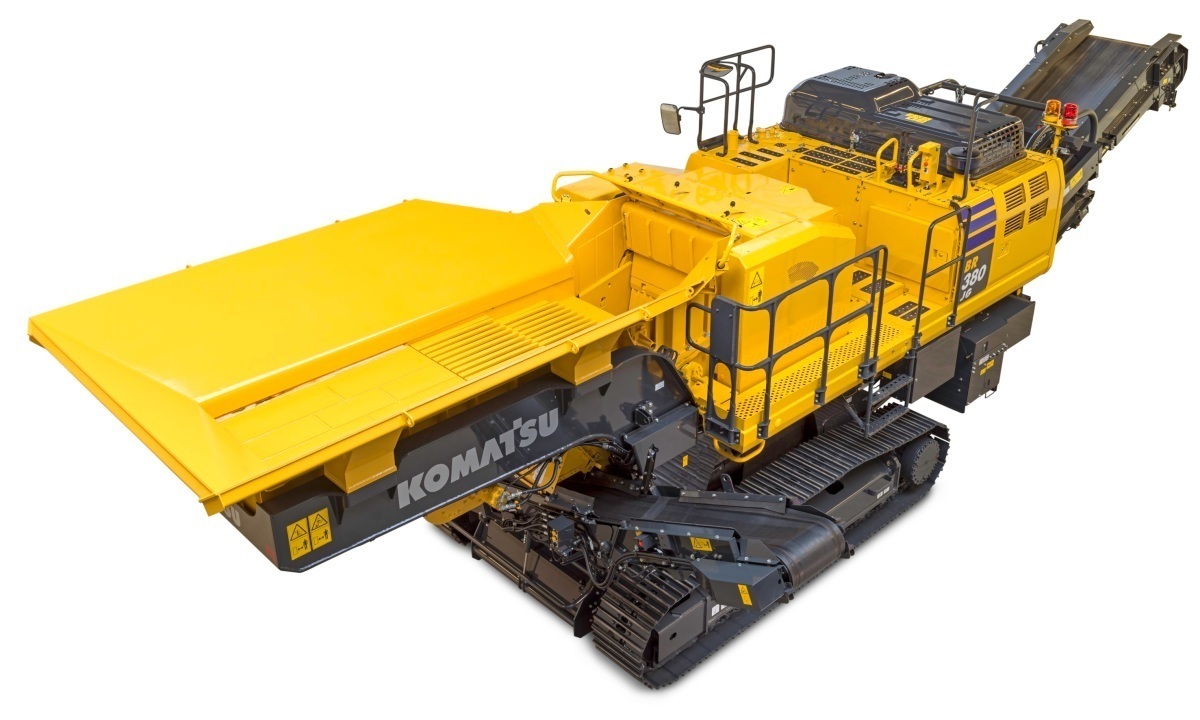

Komatsu’s BR380JG-3 mobile jaw crusher
Building on the reputation of the BR380JG-1, the Net Zero C02 emissions BR380JG-3 incorporates a new two-axis type deck vibrator, which enables a smooth continuous flow of material to the highly efficient two stage grizzly separator bars. The semi-automatic feeding system incorporates crusher overload detection and automatic feed control to enable consistent and efficient production. The machine has a 1,065mm x 550m jaw opening, with tapered side plates, and the automatic jaw setting feature is user friendly, and makes it easy for a customer to crush at a high volume to the desired discharge material size.

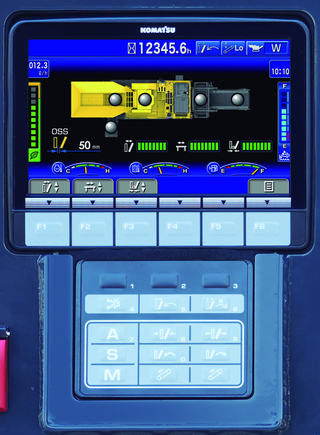

The high resolution monitor panel provides real time machine condition information, fuel consumption information and ECO guidance
© Komatsu
With a maximum crushing capacity of up to 240 t/h and a 1050 mm wide main conveyor, which has a top speed of 120 m/min, a stockpile of 37 t can be achieved before any machine movement is required. The BR380JG-3 also has the option of a side muck conveyor and magnetic separator, which provide additional versatility. An easy one-touch start-and-stop function, makes it quick and simple to operate the machine, and with the addition of the standard radio remote control, allows operators to multitask and increase their efficiency. The high resolution monitor panel, available in 27 languages, provides real time machine condition information, fuel consumption information and ECO guidance.
The BR380JG-3’s enhanced safety features include a foldable ground level maintenance access step, which allows safe easy access while retaining a transport width of 2870 mm. The machine also provides new guard rails and safety harness anchor points. The machine incorporates Komatsu’s telematic system Komtrax, which provides machine performance reports, and engine aftertreatment system health and maintenance reports and all through 4G mobile communication.
Hall C6, stand 222-223 and FM 713/1
