MPS conveyor range expands

Terex MPS announced the addition of the TC-14036-W to the range of conveyors. The TC-14036-W is a fully electric driven 42 m radial telescopic conveyor which offers increased throughput and reduces the need for wheel loaders on site due to its large stockpiling capacity.

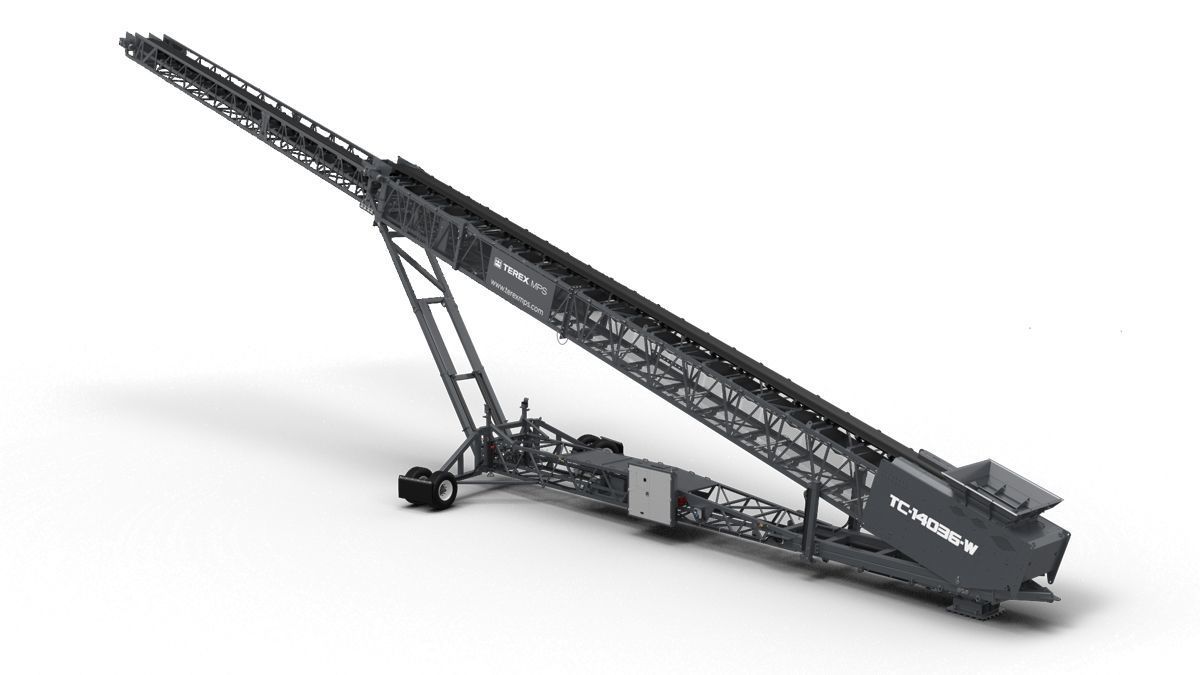

  TC-14036-W
© Terex

TC-14036-W
© Terex

The TC-14036-W rotating telescopic conveyor has a working length of 42 m, 270° of radial movement and is available in 400 t/h and 600 t/h options. The telescopic conveyor is available in pit portable or road towable variants, making the high quality machine suitable for almost all applications including sand & gravel, C & D waste, blasted rock overburden, river rock and processed ores/coal crushing. With a stockpile height of 14 m and maximum stockpile capacity of 100 000 tonnes the TC-14036-W provides a heavy duty solution to bulk material handling.



Key Features

1. Telescopic up to 42 m long

2. Fully electric drive

3. Automated Stockpile Patterns – Radial Windrow, Inline Windrow, Radial Conical, Inline Conical

4. The belt adjusters are bolted in as opposed to welded

5. Impact bars as standard at each side of the feed-boot bed

6. Outer conveyor full length under-guards and side guard

7. One hydraulic tank fitted for all specifications

8. Lattice design

9. Pit Chassis multifunctional wheels

10. Braked motor for radial function

11. Road chassis version

www.terex.com
