Normet is expanding their Normet SmartDrive® battery-electric equipment offering

Normet launched their Normet SmartDrive® battery-electric vehicle (BEV) offering with zero local emissions during the bauma19 exhibition in Munich in 2019. Since then, the company has gradually expanded their SmartDrive offering and gained even more experience in the field. Normet SmartDrive® is a modular BEV architecture designed to optimize energy consumption and performance in underground mining and tunnelling applications. It allows for higher productivity, lower operating costs and zero local emissions.

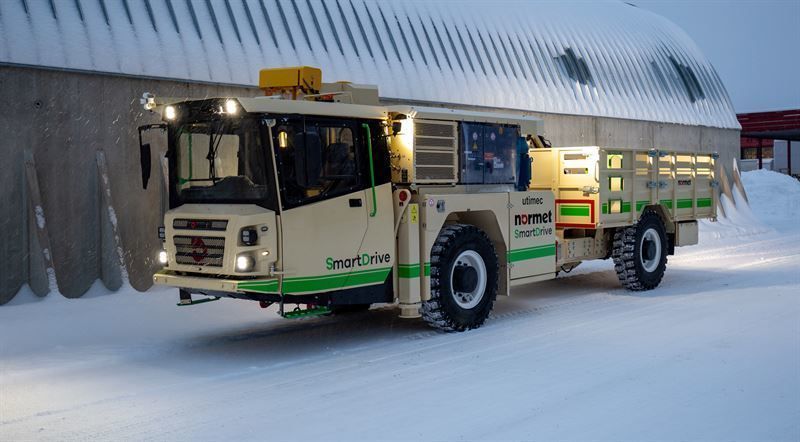

Battery electric SmartDrive architecture is a perfect choice for underground logistics. The new Utimec MF 100 Material SD transports the goods to the mine site efficiently
© Normet

Battery electric SmartDrive architecture is a perfect choice for underground logistics. The new Utimec MF 100 Material SD transports the goods to the mine site efficiently
© Normet
Combining Normet’s decades-long experience in underground operations with state-of-the-art BEV technology, Normet SmartDrive® is the pinnacle of the company’s encompassing expertise in designing and manufacturing purpose-built underground equipment. The offering is comprised of underground logistics and transportation applications, explosives chargers, concrete sprayers and lifting & installations equipment along with fast battery chargers.

At the moment, Normet has many battery-electric units working in underground mines and tunnel sites in Europe, Asia and South America. Their operators summarize that key benefits of SmartDrive equipment are improved air quality with no diesel particulate matter (DPM), lower noise and heat levels and increased performance.

In the process of electrification, the underground mining industry is gaining a head start over tunnelling. For mining, the most popular SmartDrive application is a concrete transmixer, the Utimec MF 500 Transmixer SD, as the benefits of BEV technology for concrete transportation and underground logistics in general are both demonstrated and undeniable. However, the electrification of process equipment like explosives chargers, scissor lifts and sprayers are also increasingly interesting among miners on a global scale.

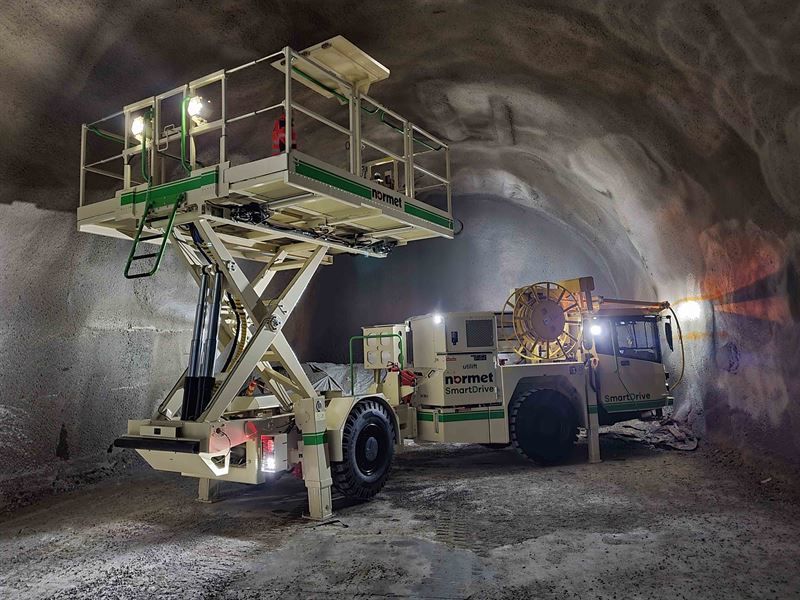

The Utilift 330 SD battery-electric scissor lifter allows for safe and efficient lifting without any diesel emissions
© Normet

The Utilift 330 SD battery-electric scissor lifter allows for safe and efficient lifting without any diesel emissions
© Normet

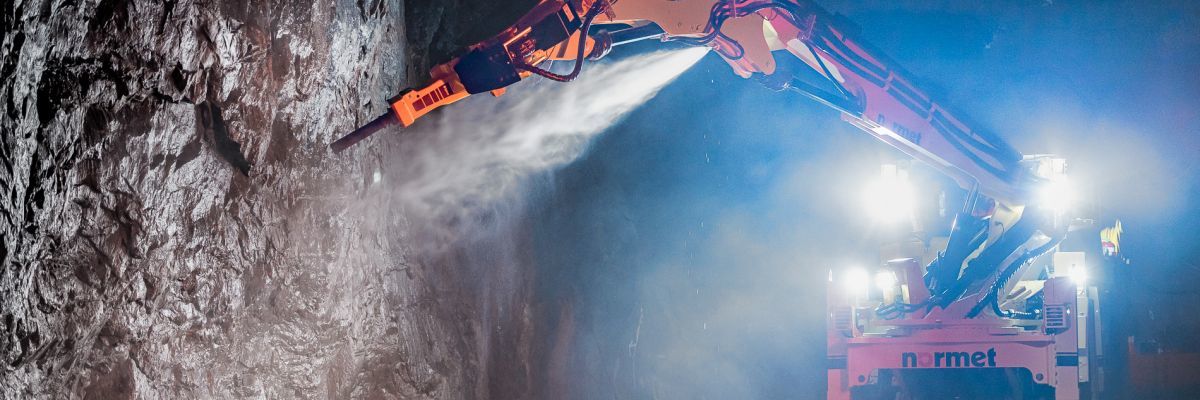

In tunnelling, Nordic countries are paving the way to larger-scale electrification by already having eight units of Spraymec 8100 SD concrete sprayers in use, and at least four more beginning operation in 2023.

As the technology is now proven and recognized as the future of underground operations, the demand for battery-electric equipment is only increasing in the future. Consequently, Normet is constantly expanding their SmartDrive offering to cover even more applications.



Expanding the battery-electric Normet SmartDrive® offering

The newest additions to the SmartDrive offering are two applications for lifting and installations, Utilift MF 330 SD and Utilift MF 540 SD, and Utimec MF 100 Material SD for material transportation.

Normet SmartDrive® architecture combined with Normet’s proven personnel lifting system enables safe lifting works with zero local emissions, improving the working comfort significantly. The Utilift MF 330 SD with a lifting capacity of up to 3 tonnes and a maximum platform height of 3.5 m is designed to provide a safe working platform for all kinds of installation works in tunnels up to 5.5 m high.

The Utilift MF 540 SD is a scissor lifter offering reliable performance for all lifting and installation needs in underground mines up to 6.5 m high. A 4.5-tonne maximum lifting capacity and 4.5 m maximum lifting height makes the installation of even the heaviest mine ventilation fans possible.

Both lifters can be equipped with line-of-sight remote driving system to further increase the safety and productivity by allowing the operator to relocate the machine easily with wireless remote control from the ground or from the platform.

The Utimec MF 100 Material SD is designed for efficient bulk material transportation in underground mines and tunnels. It has a payload capacity of 10 tonnes and comes in two different platform versions with either low or high platform edges. The vehicle can be equipped with an optional crane with up to 2 tonnes lifting capacity for effortless loading and unloading of heavy objects.

www.normet.com

Related articles:

Normet starts a new era in underground scaling

Normet announced the launch of the Scamec LC Thor, marking the start of a new era of underground scaling operations. Replacing its globally successful predecessor, the Scamec 2000, the completely new...

more

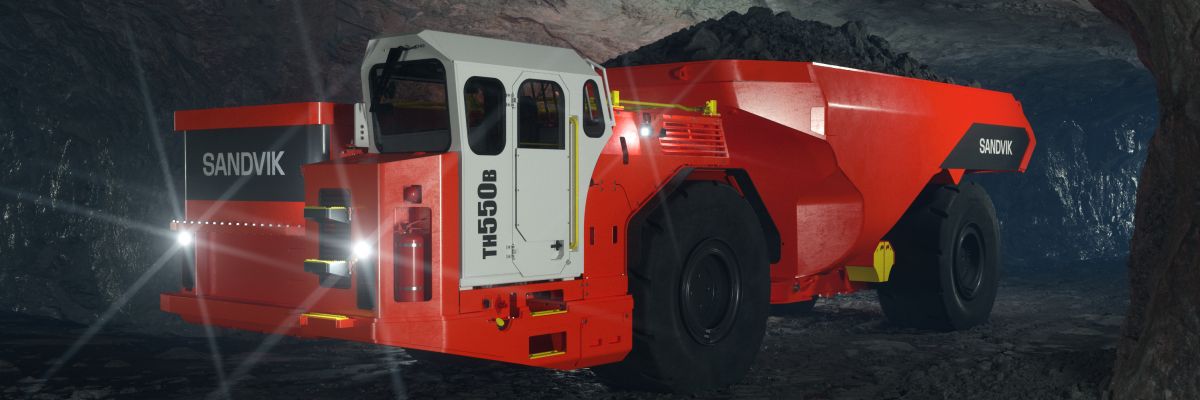

Sandvik’s latest 50-tonne BEV truck combines best of two worlds
