thyssenkrupp Industrial Solutions is introducing a number of new, groundbreaking solutions for the minerals, mining and aggregates industries at bauma 2019. “At thyssenkrupp, we have the focus to translate the specific and changing requirements of our customers into high-quality products and services”, says Torsten Gerlach, CEO of the Mining Technologies business unit at thyssenkrupp Industrial Solutions. “The solutions being showcased at bauma 2019 will assist our customers from the mining and minerals industries to improve operating efficiency.”


New eccentric roll crusher ERC to make world debut in Munich

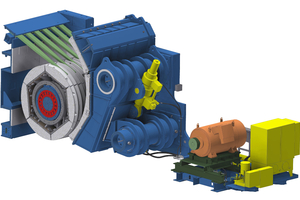

With its new eccentric roll crusher (ERC) thyssenkrupp Industrial Solutions has developed a groundbreaking solution for the primary reduction of hard rock and ore. The new crusher is particularly compact and robust. Its patented design with an integrated screen permits throughputs between 600 and 8000 metric t/h. Suitable for use both underground and in surface operations, the ERC offers significantly higher efficiency and flexibility than conventional primary crushers in the processing of hard rock. It will make its world debut at the bauma 2019 show in Munich.


Mobile stacking bridge lizard® allows cost-efficient heap leaching and dry tailings stacking

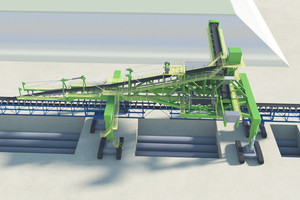

In addition, thyssenkrupp Industrial Solutions will present its new mobile stacking bridge lizard®. This unique solution for heap leaching and dry tailings stacking combines two proven technologies – the conveyor bridge and the tripper car – in a new way. The lizard decouples the crawler-mounted tripper car from the conveyor bridge, enabling it to be controlled independently of the bridge.


Decoupling the tripper car from the conveyor bridge has several advantages: The transitions between the bridge segments are easier as there is no stress from a traveling tripper car on top of the bridge. As the loads on the bridge sink, the overall construction of the bridge outweighs the additional chassis and structure of the tripper car. This way the product saves weight and costs accordingly. In addition, a larger dump height and longer outreach are possible.


A key advantage of the lizard is its multi-crawler chassis which allows more flexible operation. thyssenkrupp has used its expertise in this area to develop a unique solution that improves productivity: A multi-crawler chassis with no override control, the so-called “float system”, is attached to the tripper car. The double crawlers with no steering cylinders ensure unrestricted maneuverability in all directions. The system can be attached to any crawler to avoid the large turning circles of conventional gearing systems.


variopactor: Newly developed reversible impact crusher ensures cost-efficient production of gravel, chippings and sand

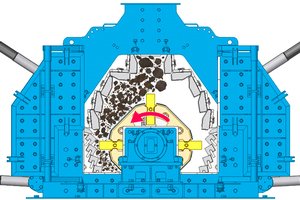

variopactor is a newly developed reversible impact crusher. The name speaks for itself: With its modular design, the variopactor can be adapted to a wide variety of applications. Using different rotors, aprons, and the optional grinding path, it can produce gravel, chippings or sand. In addition to its versatility, the variopactor offers consistent product quality with high cubicity and significantly reduced downtime for maintenance.


For the first time thyssenkrupp is offering the option of Metal Matrix Composite (MMC) blow bars with high-carbide inlays. Depending on application and customer requirements, the matrix material for the MMC blow bars can be made from different steel alloys. The highcarbide inlays are cast into the matrix material in the main wear zone along the edge of the blow bars, where most of the crushing work takes place. Compared with traditional highcarbon chromium steel, the new MMC material significantly increases the service life of the blow bars.


Digital solutions and services to enhance bulk handling

Along with new minerals and mining equipment, thyssenkrupp will present a broad range of solutions and services for stockyard and port operations. Every mining company and port operator faces the challenge of ensuring the health and safety of its staff and increasing productivity while reducing operational costs. With the fully automated and digitized smart stockyard and port solutions thyssenkrupp addresses those challenges and helps its customers to stay competitive.


thyssenkrupp's services and solutions for smart material handling include digital maintenance assistance systems (MAS), systems for stockpile management and dronebased inspections. In addition, all conveyor systems and handling machines involved in the process function fully automatically and can be operated and controlled from a central control room. Anti-collision systems ensure the safe operation of large-scale equipment.




Stand B2.203

www.thyssenkrupp-industrial-solutions.com
