A flair for fine cleaning

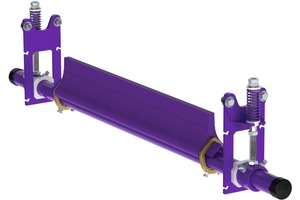

The Y-type secondary cleaner by Flexco guarantees outstanding cleaning performance

Material carryback is one of the main causes of potential
problems in belt conveyor systems. To prevent this, operators rely on precleaners for coarse materials and secondary cleaners for fine cleaning, and in many cases these cleaning systems can remove more than 90 % of carryback. The new Y-Type by Flexco is a flexible secondary cleaner, which can be equipped with various polyurethane or carbide blades – depending on application area.



The Y-Type improves the cleaning of the belt, reducing routine maintenance. Flexco offers this flexible solution for both normal and heavy usage, so it is available with a maximum belt speed of between 3 and 3.8 m/sec. A spring tensioner maintains a constant blade pressure on the belt at all times, providing a high degree of fine cleaning – and the pressure of the tensioner also ensures that the 75-mm-wide blade segments adapt to worn and damaged belts too.



The pole has a diameter of 60 mm for standard loads and 72 mm for heavy-duty loads. Depending on usage, the Y-Type is suitable for belt widths of 450 to 1200 mm (normal loads) and 900 to 1800 mm for heavy-duty loads. It can be used at temperatures from -35° to 82 °C. Clearly visible wear marks indicate when the segments have to be replaced. The service technician can then either remove and replace the segments individually, or replace the entire cartridge.



//www.flexco.com" target="_blank" >www.flexco.com:www.flexco.com
