XRT technology

A game-changer at Letšeng Diamond Mine in Lesotho

T‌OMRA’S XRT sensor-based sorting technology unlocks significant value for Gem Diamonds at its Letšeng Diamond Mine. It delivered an effective solution for coarse fractions in historical tailings dumps, recovering 15 times the initial investment in 4 years. This success has led to the installation of the first TOMRA Final Recovery sorter in the world, now in its final commissioning stage. Projects to further upgrade the mine’s Recovery Plant with more TOMRA XRT sorters are in the pipeline.



Gem Diamonds, a leading global diamond producer of large high value diamonds, owns 70 % of the Letšeng mine, located in the Maluti Mountains of Lesotho. It is one of the largest open pit diamond mines in the world, it processes ore from two kimberlite pipes – the Main pipe (17.0 ha) and the Satellite pipe (5.2 ha) – and is known for the recovery of Type II diamonds. The ore is treated through two plants with conventional crushing, scrubbing, screening and Dense Medium Separation (DMS) processes. The DMS concentrate is split into three fractions that are sent to be processed with XRT (X-Ray Transmission) and XRF (X-Ray Fluorescence) technologies.

In 2017, the company undertook several activities to unlock the mine’s full potential and contacted TOMRA Mining to explore ways of improving its Coarse Recovery process.



A trial of TOMRA’s XRT technology quickly reveals its potential

Jaco Houman, Senior Manager Technical and Projects at Gem Diamond Technical Services, explains: “We had quite a lot of historic tailings material. We had a view that, since we had commissioned a new Coarse Recovery in 2015, we weren’t quite getting all the diamonds we were looking for. We worked with our supplier to improve, but we felt we had reached a ceiling point. That’s when we decided to augment the installed base and contacted TOMRA.”



Gem Diamonds rented a TOMRA COM Tertiary XRT sorter, which was deployed in the second half of 2017 to process historic tailings. “Our objectives were to audit the Coarse Recovery Plant performance, increase diamond recovery, improve the recovered revenue and evaluate the TOMRA unit as a recovery and bulk sorting unit,” says Jaco Houman.



The initiative was a success and the TOMRA sorter delivered on all the objectives Gem Diamonds had set: “During the 6-month rental of this unit, we got a better understanding of our primary recovery efficiencies, we were able to conduct off-line auditing and scavenging activities, we increased our diamond recovery and revenue, and we effectively introduced bulk treatment of historical recovery tailings.”



TOMRA’s XRT sorter exceeded all expectations: “The unit showed that it recovers consistently from the tailings material. The value that came from it spoke volumes about the technology and the potential that could still be obtained with the material available. It cemented the realisation that we needed a recovery unit for scavenging, auditing and second-pass recovery.”



High Value Recoveries and excellent ROI with TOMRA COM XRT 2.0 sorter

On the back of the excellent results achieved with the rental unit, Gem Diamonds purchased a TOMRA COM XRT 2.0 sorter to replace the rental unit at the end of the contract. Featuring a bigger ejection chamber, higher belt speed and throughput, this unit was perfectly suited to the large diamond recovery set up the company was looking for, and they didn’t have to wait for it to deliver: “In January 2018, we had pretty much just finished commissioning this unit and we recovered the biggest stone Letseng had ever seen, the 910-carat Lesotho Legend. There was no question about performance after that,” says Jaco Houman. “Since 2017, we have recovered 6 diamonds that were sold for more than 1 million US$ with the two TOMRA XRT sorters.”



Since installing the TOMRA COM XRT 2.0, the mine’s +5 mm historic material has been depleted and the company is now focusing on scavenging and auditing the existent tailings. Jaco Houman explains: “About 10 tonnes a day of coarse fractions are stockpiled per export period, and we do roughly 8 exports a year. Over an average of about 45 days, we accumulate 450 to 500 tonnes, which we process at the end of the export period. We are seeking confirmation that all economical value has been recovered and that nothing has been missed in our recovery process. By having this unit in place, we are now able to recover all the diamonds that are present in our concentrate, either through a first or a second pass.”



With its performance, the TOMRA COM XRT 2.0 sorter has more than paid for itself, as Jaco Houman points out: “To date, we have recovered about 15 times the investment value over the 4 years it has been in operation.”



Gem Diamonds purchases the first TOMRA XRT Final Recovery sorter in the world

Gem Diamonds has been so impressed with TOMRA’s XRT technology that they have become early adopters of its ground-breaking Final Recovery solution, purchasing a TOMRA COM XRT 300 /FR sorter before it was even launched, so that the Letšeng mine is home to the first unit to be installed in the world.

Having found an effective solution for Coarse Recovery with the TOMRA COM XRT 2.0 sorter, Gem Diamonds turned their attention to the Fines Recovery Circuit. “We sent some samples for testing to an independent facility and our assumptions of under-recovery in certain size fractions were confirmed,” says Jaco Houman. “We wanted to find a solution to increase our revenue from the treatment of historic material. We were looking for a compact machine we could use as a final recovery sorter, and the TOMRA COM XRT 300 /FR performs very well in that duty, or even as a single particle sorter. Also, it is a sorter that will treat a super-concentrate and work very well as a scavenging unit.”



“The diamond industry had been waiting for 20 ears for a way to introduce XRT directly into the Diamond Final Recovery instead of the bulk concentration stages where the DMS modules exist,” explains Ryan Szabo, Sales and Project Manager Diamonds at TOMRA Mining. “The TOMRA COM XRT 300 /FR is a compact sorter that can function within the diamond recovery and sort house environment, and it is the first to accurately sort diamonds based on their properties and not their proxies, achieving market leading recovery with the highest recovery factor to date. This made it ideal for Gem Diamonds’ requirements at the Letšeng mine.”



TOMRA’s Final Recovery sorter is now in the commissioning stage, and performing well, as Jaco Houman states: “We are getting consistent recovery from the TOMRA COM XRT 300 /FR, which is performing to our expectations from this perspective. The overall throughput has not been attained due to deficiencies in the drying system upstream, which are making feeding the sorter at higher throughput rates difficult. However, design corrections are in the process of being implemented and I am confident that we will be able to demonstrate performance of the Final Recovery sorter at the higher capacities.”



“The Final Recovery sorter has functioned exceptionally well,” adds Ryan Szabo. “To date the sorter has never failed a performance test at the Letšeng Diamond Mine. It has already had successful results in the commissioning stage. In fact, it’s the most successful first implementation of a new solution that TOMRA has ever had.”



The installation of the TOMRA COM XRT 300 /FR is the first in a series of three projects that Gem Diamonds is planning in order to upgrade its Recovery Plant with the addition of further TOMRA XRT sorters. The company is also working on a project for the construction of a second recovery circuit that would combine the TOMRA COM XRT 2.0 sorter currently on site, a new TOMRA COM Tertiary sorter and a COM XRT 300 /FR sorter to create an off-line scavenging facility. This will be followed by a third project, which will look at implementing TOMRA XRT technology through the remainder of the Final Recovery.

www.tomra.com

www.tomra.com/mining

x

Related articles:

Issue 11/2024 Exceptional findings

TOMRA Mining XRT technology as a complete diamond recovery solution

One of the largest rough diamonds in recorded history, a 2492-carat stone, was recovered last August by Lucara Diamond Corp. with TOMRA X-Ray Transmission (XRT) technology at the Karowe Mine in...

more
Issue 09/2021 Yield guaranteed

XRT Final Recovery solution that guarantees final pure diamond concentrate

T?OMRA Sorting Mining has launched the new TOMRA COM XRT 300 /FR Final Recovery sorter, which delivers concentration factors up to 1 million with limited stages and is the only solution on the market...

more
Issue 07-08/2019 Record-breaking

TOMRA XRT Technology recovers 1758 carat diamond

One of the largest diamonds in recorded history, an unbroken 1758 carat stone, was recovered by TOMRA XRT sensor technology commissioned by Lucara Diamond Corp at its Karowe Mine in Botswana. The...

more
Issue 06/2024 Optimised use of data

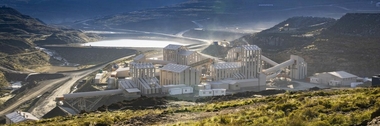

Excellent results at Mothae Diamonds in Lesotho
