Introducing new crushing and screening models

Terex® Finlay based in Omagh, recently hosted a UK customer open day in Doncaster/United Kingdom. The event was held Thursday 24th September, 2015, and attracted over 200 end user customers. In addition to UK visitors there was also an international flavor with customers and dealers in attendance from Austria, Belgium, Ireland, Lithuania, Germany, Poland and Russia.

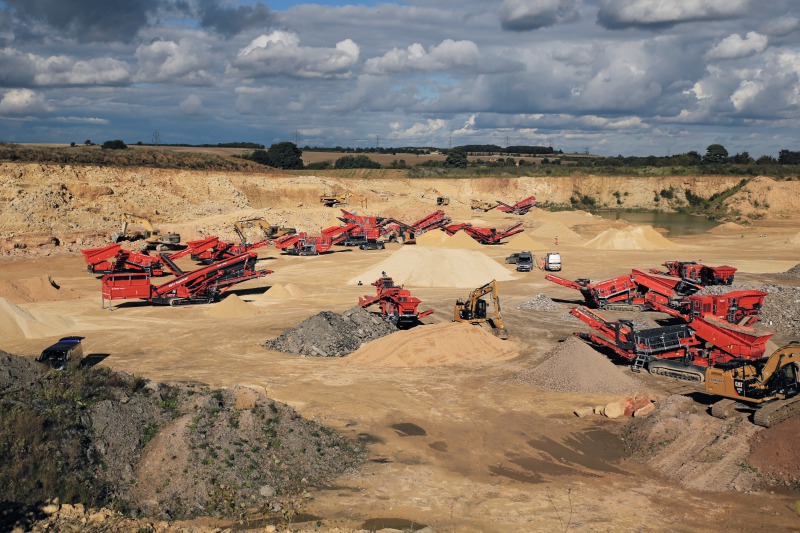

The event and product demonstration were hosted by Catplant, one of the leading companies in providing quality aggregates and recycling solutions in South Yorkshire/England. The onsite demonstrations featured thirteen Terex Finlay machines, five of which have been introduced to the market during the course of 2015: J-960 jaw crusher, J-1170AS jaw crusher, C-1545 cone crusher, 873 heavy duty screener and 693+ Spaleck inclined screener. In addition to these new machines a further two crusher prototypes that will be released in Q4, 2015, were on display: the I-140 impact crusher and the C-1540S cone crusher. Profile of all the new machines are as follows:

Terex Finlay J-960 jaw crusher

The Terex Finlay J-960 is a compact mobile jaw crusher incorporating a proven Terex direct drive single toggle jaw crusher which gives high capacity with large reduction capacities. The plant features a heavy duty hopper with integrated vibrating grizzly and pan feeder as standard. Its compact size, excellent mobility and high crushing capacity even at tight settings in recycling and hard rock operations make the J-960 ideal for small to medium sized operators.

Terex Finlay J-1170AS Jaw Crusher

The J-1170AS jaw crusher provides the flexibility of a crushing and screening plant on one machine. This versatile machine features a detachable on-board sizing screen. The heartbeat of the machine is a robust hydrostatically driven Terex jaw chamber which provides high capacity with large reduction ratios. The jaw chamber configuration can be set up specifically for quarrying applications or processing construction demolition debris using the hydraulic release chamber option. The J-1170AS features a heavy duty variable speed VGF and integrated prescreen giving excellent production throughput in quarrying, mining, demolition and recycling applications.

Terex Finlay C-1545 Cone Crusher

The Terex® Finlay C-1545 is a high capacity cone crusher that consistently provides high output capacity and a product with excellent cubicity. This efficient and productive machine incorporates the NEW Terex® 1150 cone crusher driven by direct clutch drive with variable speed, automatic tramp relief and hydraulic closed side setting (CSS) adjustment. The large hopper/feeder has a metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute.

Terex Finlay 873 Heavy Duty Screen

The 873 heavy duty screen has been engineered to work as a primary screen in quarry, demolition, C&D Recycling, landfill material, topsoil, sand and gravel, coal, slag, ore processing and aggregates. This new model offers small and medium sized operators a flexible and class leading machine with a wide range of available screening media configurations. The Screen box angle can hydraulically adjusted to an angle between 13 to 19 degrees. The Screen box discharge end raises hydraulically 500 mm to facilitate mesh changing. The Screen box can accept punch plate, cascade fingers, bofar bars and speedharps.

Terex Finlay 693+ Spaleck inclined screener

The Terex Finlay 693+ Spaleck is the ultimate in mobile fine screening and separation technology. At the heart of the plant is an innovative 2-deck German designed and constructed high performance screenbox – each deck 5.9 m x 1.53 m – with state of the art flip flow technology on both the top and bottom decks guaranteeing first class screening of difficult materials. Its processing capabilities and application flexibility make the machine the ultimate tracked mobile solution for the processing and separation of recycling materials such as incineration slag, shredder light and heavy fraction, scrap metal, electronic scrap, compost, clay, quarry dust, agg-lime, plastic fractions, biomass, topsoil, ore and aggregates etc.

New Crusher Prototype previews

In addition to these machines there were also two new two crushers previewed to customers at the event, which will be launched in Q4, 2015. I-140 impact crusher and C-1540S cone crusher. The C-1540S cone crusher offers direct drive transmission via clutch making it fuel efficient. A hydraulic tramp relief with automatic reset protects the chamber and minimises downtime. A metal detection system on the feed belt with ‘auto-stop’ protects the cone from tramp metal, while the purge system removes contaminants from the machine.

The key features of the I-140 include a great improvement in the ease of material flow through the machine, with each component increasing in width as the material moves through the machine. The fully hydraulic assisted apron setting features makes adjustment of the aprons convenient and efficient. A heavy-duty VGF with integral pre-screen removes dirt fines.
