Latest technological advancements from Terex Washing Systems

A‌t this years Hillhead Show, Buxton/UK, Terex Washing Systems (TWS) presented two new products: the AggWash™ 300, a screening, scrubbing, sizing and sand recovery for recyclable aggregates, all on one modular chassis, and Terex AquaClear™, the first water management treatment system from Terex.

AggWash™ 300 – a game changer in wash recycling

The AggWash™ was designed to address higher production requirements for recycling customers and quarry owners, particularly in the construction, demolition and excavation waste Recycling market. The high performance solution brings together rinsing, screening, scrubbing and sand washing capabilities on a single plant. While it‘s readily portable format makes it particularly suitable for green-field applications, contractor use and temporary planning permission sites, operators more used to static installations will still appreciate the small footprint and minimal site preparations required. Paul McWilliams, TWS Engineer Manager commented on the design: “In all cases, installation time is significantly less than conventional builds thanks to the high level of factory pre-fitting and connections. The new design ensures maximum serviceability and performance despite numerous innovative features, including easily removed pumps, ready access to screening media and intuitive controls.“

The AggWash™ incorporates two 4.9 m x 1.5 m triple deck Terex Cedarapids LJ-TS Series horizontal screens, incorporating a triple shaft vibrator mechanism that provides high G force along with efficient oval motion. The compact installation height of horizontal screens compared to conventional inclined circular motion screens is conducive to the condensed working envelope of the AggWash 300. The ‘rolling chutes‘ feature provides easy access for maintenance of the screen. The machine boasts a high capacity logwasher with twin shaft angle adjustment to scrub gravel fraction and float out organics and adhered contaminants. There is a 1.8 m x 1.2 m trash screen for dewatering of lightweight contaminants from the logwasher and the plant has an integrated sand plant incorporating rubber lined pumps and hydrocyclones, available in various configurations and capacities. Critical for ease of servicing and maintenance, the AggWash 300 also features walkaround access for maintenance.

AquaClear™ – comprehensive water management

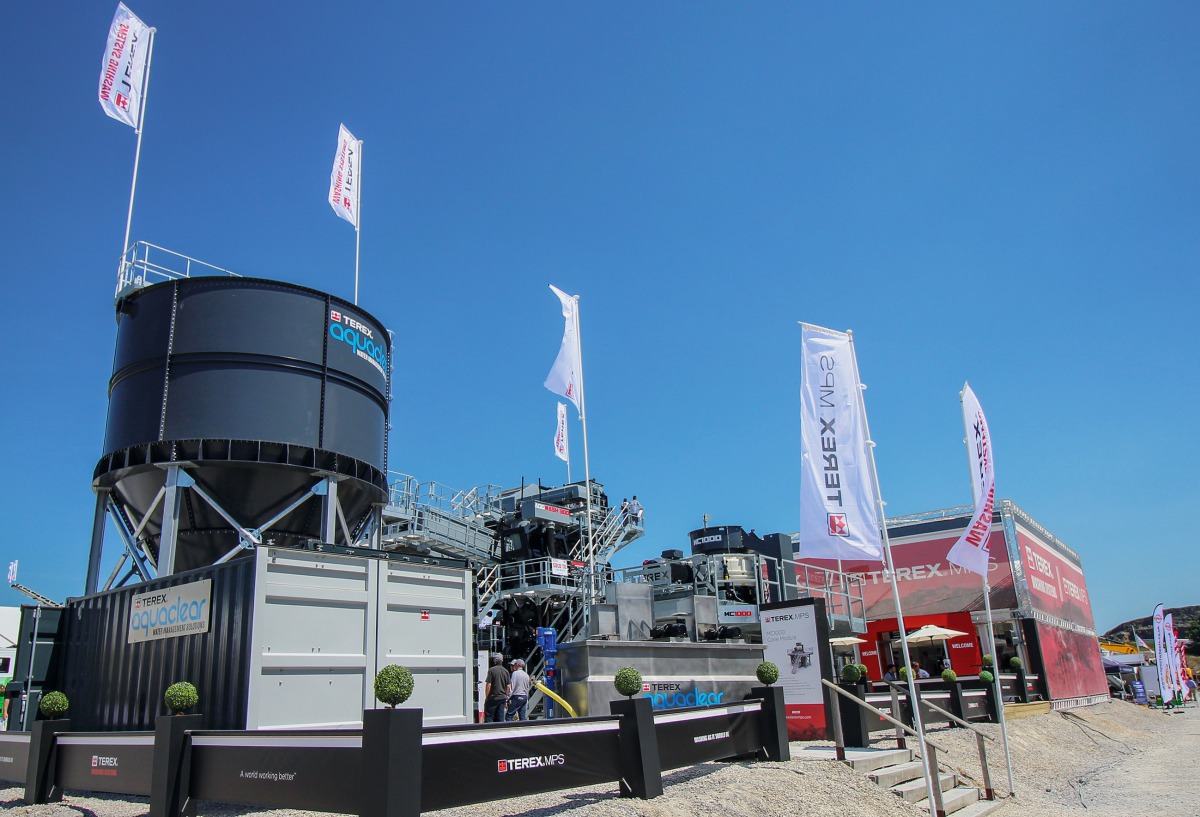

In addition TWS showcased their new water management offering, AquaClear™, enabling TWS to offer end-to-end solutions for washing and water management from a single supplier. The range includes clarifying tanks, flocculent dosing systems, filter presses and all associated equipment. The first ever installation is currently being fitted in New England/USA, where TWS are planning an Open Day for their customers later in the year.

Water Management Solutions are typically comprised of three main components; a floc dosing plant and thickener tank can be used to recycle up to 80 % of the water used in the washing process. This basic method still involves the use of ponds but on a smaller scale as the sludge sent to the ponds is of a much higher specific gravity (1.5 sg). The next stage is to incorporate a filter press which hydrates this thickened sludge even further typically down to 25 % moisture. The filter press eliminates the need for ponds as the sludge is hydrated to a material/cake which can be handled by a loading shovel. This cake can be used as a lining or capping material.

TWS Director, Oliver Donnelly, commented: “TWS are due to begin manufacturing the Terex AquaClear Water Management Solutions in Dungannon/Northern Ireland, later this year, working alongside strategic alliance partners in the US. We are already handling enquiries for AquaClear from Europe and North America markets. Through our strategic alliance, (for North American customers) we can send a filter press fully built up, rather than in its component parts in containers.“
