Powerscreen will present new products

At steinexpo, Powerscreen will demonstrate a series of new products in conjunction with local distributors C. Christophel GmbH and Jürgen Kölsch GmbH in live sessions.

Trakpactor 320SR impact crusher

The Trakpactor 320SR is a mid-sized horizontal impact crusher redesigned with some key enhancements to offer operators and contractors excellent reduction and high consistency of product shape for performance in quarry and recycling applications. The plant is capable of working in the most demanding environments and features rapid set-up time, fuel efficient direct drive system and excellent output potential of up to 320 t/h. The plant features a recirculating conveyor which raises for transport allowing more ground clearance under the machine when moving on site and loading for transport. One of the most exciting features of the Trakpactor 320SR crusher is the quick-detach post-screen section which converts it to a standard Trakpactor 320 unit. This provides operators with outstanding versatility to use the machine in a variety of different applications.

Warrior 2100 screen

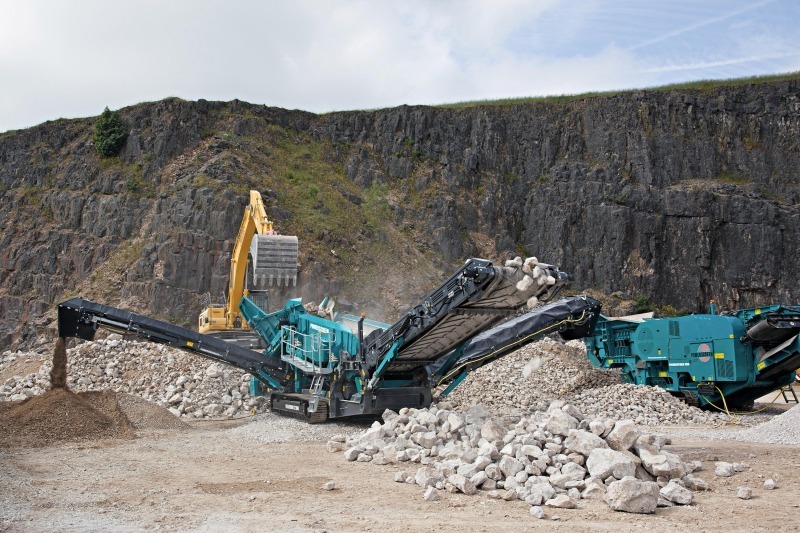

The Warrior 2100 screen (Fig. 1) is engineered to include the proven Triple Shaft technology, first developed for the successful Warrior 2400. This Triple Shaft technology, unique to Powerscreen heavy duty mobile screens, is designed so the 16’ x 5’ screen box is highly effective and efficient while maintaining exceptional throughput productivity. The extreme screening acceleration offers the Warrior 2100 screen improved capabilities over its class rivals, especially in sticky scalping applications. With amplitudes and accelerations in excess of 16 mm and 6 g respectively, the Warrior 2100 triple shaft screen outperforms conventional screens in a multitude of applications including aggregates, overburden, processed ores, topsoil, compost, C&D waste, C&I waste, foundry waste and biomass.

1150 Maxtrak cone crusher

The range of Powerscreen tracked mobile cone crushers has broadened with the launch of the mid-sized 1150 Maxtrak unit. Targeted at quarry operators and contractors alike, the 1150 Maxtrak model delivers the same perfect product shaping for which the other Powerscreen cones – 1000 Maxtrac and 1300 Maxtrac – have become world-renowned. The machine will be offered in two key configurations: a direct feed model and a pre-screen version which enables customers to handle dirty feed material and achieve higher production rates. With a choice of strokes and four liner options which are all compatible with a single upper frame, the 1150 Maxtrak cone crusher can be easily configured for all applications. Feed sizes of up to 205 mm are possible into the 225 kW cone chamber which is driven directly by a fuel efficient 331 kW Scania DC 13 engine that complies to the latest Stage IV emission regulations. One of the most impressive features of the pre-screen model is the patented hydraulic folding system for converting the machine into a direct feed layout in minutes delivering unparalleled flexibility to the end-user.

Premiertrak 600 jaw crusher

The productivity requirements of customers coupled with high expectations have led to the development of the Premiertrak 600 jaw crusher (Fig. 2) which comes to market in two possible configurations: diesel-hydraulic and diesel-electric. Both versions are designed and constructed to deliver maximum production and performance with minimum downtime and running costs. The diesel-electric machine can be powered directly from an on-site source which further reduces the cost of operation.  At the heart of the Premiertrak 600 crusher, is a 1200 mm x 820 mm modern jaw chamber incorporating robust construction with many user-friendly features including a fully hydraulic CSS range of 75 mm-200 mm and a reversing system to clear blockages quickly for increased uptime. The aggressive stroke and high inertia flywheels provide high production rates and excellent reduction ratios. With speed and safety in mind, the Premiertrak 600 crusher can be fully set-up from ground level due to its hydraulic folding and locking hopper system, in combination with the hydraulically lowering product conveyor. Like all other products in our mobile jaw range, the Premiertrak 600 model hosts an array of options which are configurable for each and every possible application.

//www.powerscreen.com" target="_blank" >www.powerscreen.com:www.powerscreen.com

Stand C22
