Innovative design

Sandvik’s new mobile impact crusher

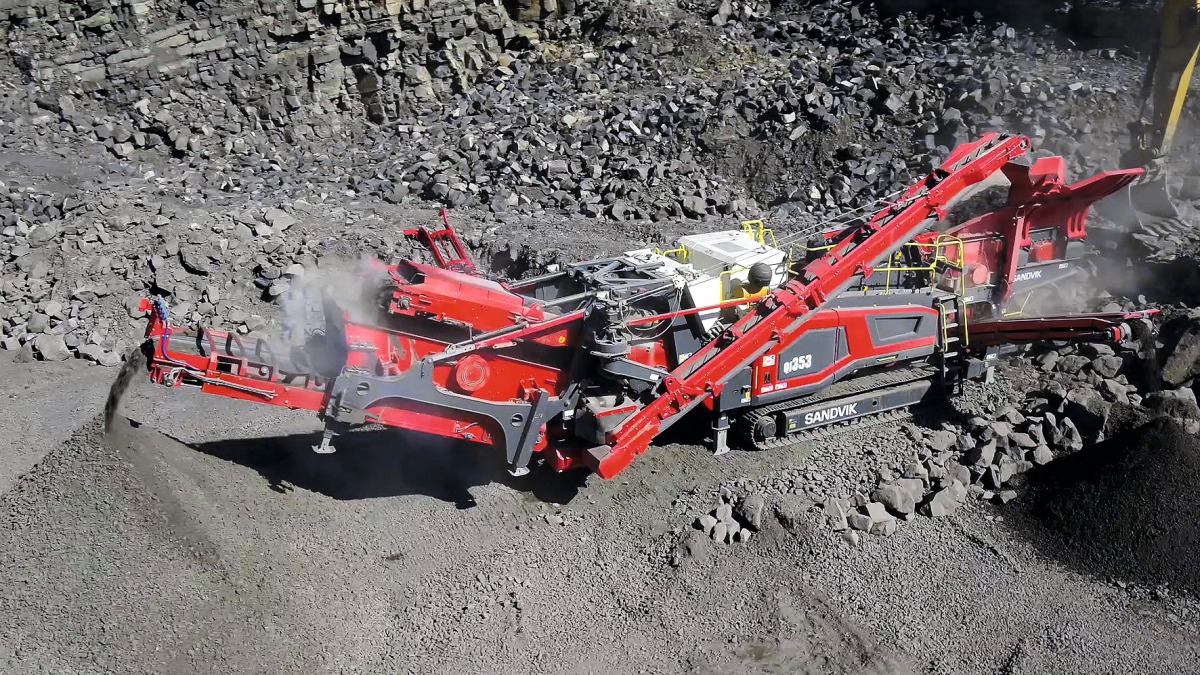

S‌andvik Mobile Crushers and Screens introduced the new QI353 mid-size impactor –the first of its New 3rd Generation 3-Series products. Designed in response to customer research, the QI353 has been built with more productivity, uptime, efficiency, flexibility, connectivity and safety at the forefront of its innovative design.


The Sandvik QI353 features a ground-up new mid-size track platform and custom Prisec impact crusher. Targeted at quarry, recycling and contractor segments, the QI353 is a versatile, mid-sized mobile impactor, designed to provide more uptime. With the operator in mind, the QI353 offers a user-friendly mobile solution, with controls and maintenance points located conveniently at ground level. A key highlight is the new automated control system featuring Optik™ intuitive user experience – with colour visual display, easy navigation, and total integration for troubleshooting, diagnostics and support.


The QI353 can process up to 400 mt/h. Its feed arrangement includes a new feed hopper with curved heavy-duty sides for greater capacity and tapered feed arrangement to reduce blockages and ensure continuous crushing. It also features a new pan feeder with geared drive and a larger pre-screen with improved access to replace media. At the core of the QI353 is a new mid-size Prisec impact crusher, which boasts the largest feed opening 1170 mm x 730 mm and largest rotor diameter 1150 mm in its class, for higher capacity & greater energy efficiency. Adjustable apron curtains and tip speed ensure a wide range of product gradations can be achieved. Also, all plant conveyors have larger discharge heights for increased stockpiling capacity.


The QI353 features a free-flowing feed arrangement where all components in the flow path through the machine get wider, for improved material flow. A load sensing system for feeder drive, to ensure continuous crushing. A larger pre-screen for effective removal of fines, maximizing throughput and reducing wear. In addition, the QI353 benefits from extended service intervals and larger onboard fuel storage to extend intervals between refuelling.


The QI353 has been designed to consume less energy, its double-deck pre-screen ensures maximum scalping capability and prevents any undersize material passing through the impactor. This maximizes crusher throughput, reduces wear costs and energy consumption. The machine requires 40 % less hydraulic oil per service and benefits from extended hydraulic oil replacement intervals. When combined, this can be up to 64 % less hydraulic oil consumed over 10 000 h of machine usage (subject to oil sampling). The QI353 is also fitted with the latest emissions-compliant power pack for maximum performance and cost efficiency.


Boasting a high degree of flexibility to suit any application, the QI353 is particularly useful for contractors who change jobs frequently. The natural fines conveyor can be positioned for right- or left-hand discharge with a three-position by-pass chute under the pre-screen allowing operators to decide where to send the natural fines. The QI353 comes prepared to accept the new enhanced HS323 hanging screen module, offering the flexibility for the crusher to operate in open or closed circuit.


The HS323 enhancements include; prepared to accept belt scales for t/h-monitoring on fines and stockpile conveyor belts, subframe enhanced for improved screen media access and tensioning and an updated mid-size stockpile conveyor. The design enables set-up in less than 30 minutes and can be fitted without the use of additional lifting equipment. The patent pending hanging screen option delivers multi-functionality as a 1, 2 or 3-way split screener, as well as a highly productive and efficient impact crusher.


The new automation system with Optik™ intuitive user experience, includes simplified operation controls and total integration with the My Fleet telematics solution. Diagnostic support, pre-installed guides for troubleshooting and real time information allows customers to know exactly how their equipment is being utilized. One of the new additions to the plant, is the availability of optional belt scales on the QI353. These are fitted to the product conveyor and will enable productivity data to be displayed on the user interface and via My Fleet for t/h-monitoring enabling full control of the machines output.


With operator safety paramount, a new access platform was installed under the feeder & pre-screen and a spacious 3-sided 270 degree platform for service and maintenance. A lifting beam, jib and tackle are provided, as well as the patented rotor turning device to ensure operator safety, when removing, rotating or installing hammers. A height adjustable overband magnet and all conveyors can be conveniently lowered for inspection and servicing purposes. Enhanced safety features are embedded within Optik™ intuitive user experience, including visual warnings and emergency stop locations.
