Processing of heavy contaminated raw gypsum using the HAVER Friction-Clean

Test Run

Processing of heavy contaminated raw gypsum using the HAVER Friction-Clean

Quelle/Source: HAVER ENGINEERING GmbH

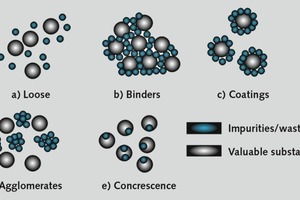

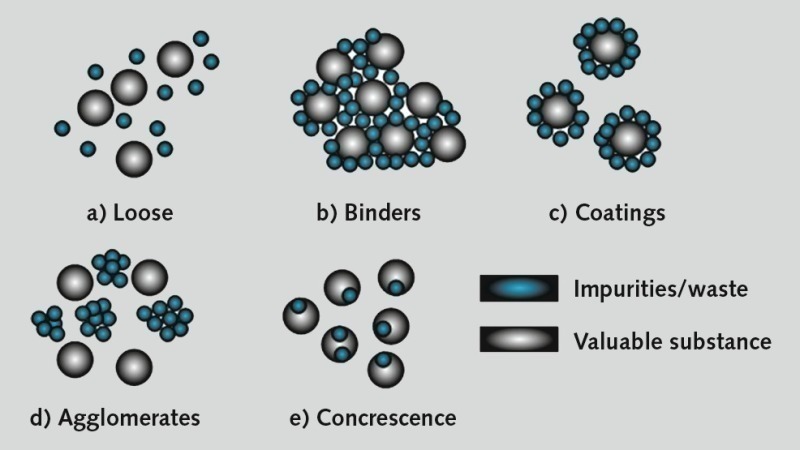

2 Bindungsformen der Störstoffe im Haufwerk • Forms of waste bonding in the mixture of solid particles

Quelle/Source: HAVER ENGINEERING GmbH

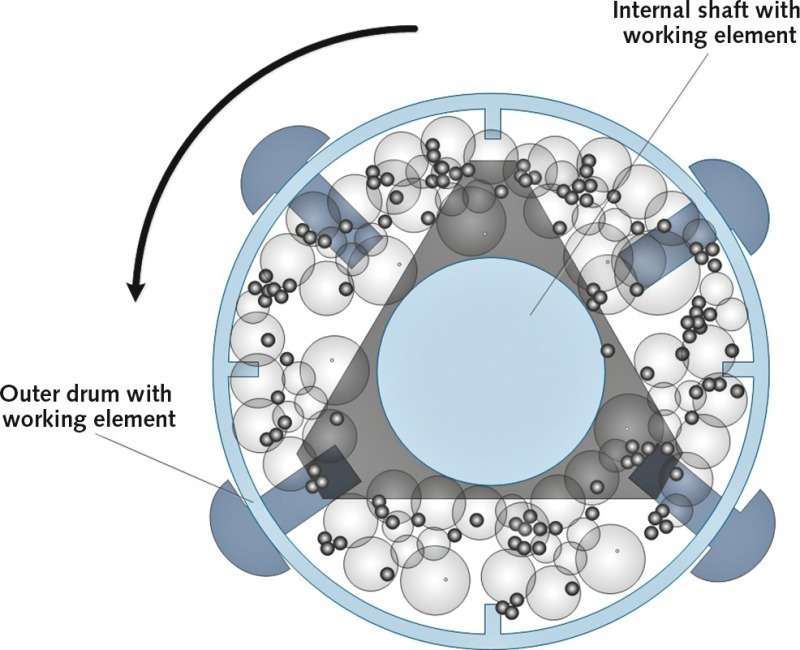

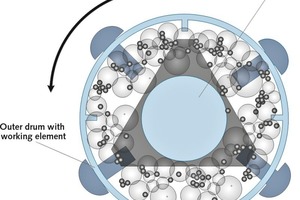

3 Prinzipskizze HAVER Friction-Clean • Diagram in principle of the HAVER Friction-Clean

Quelle/Source: HAVER ENGINEERING GmbH

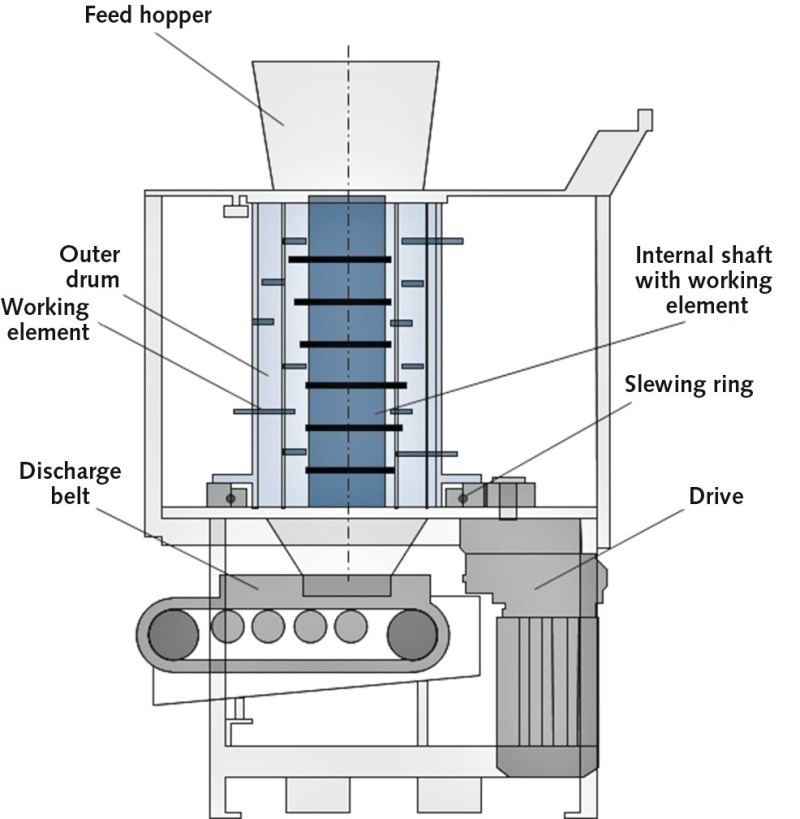

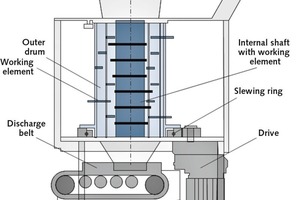

4 Schnittdarstellung HAVER Friction-Clean • Sectional view of the HAVER Friction-Clean

Quelle/Source: HAVER ENGINEERING GmbH

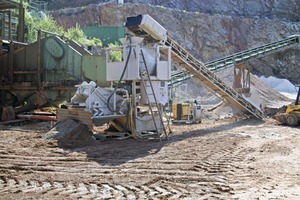

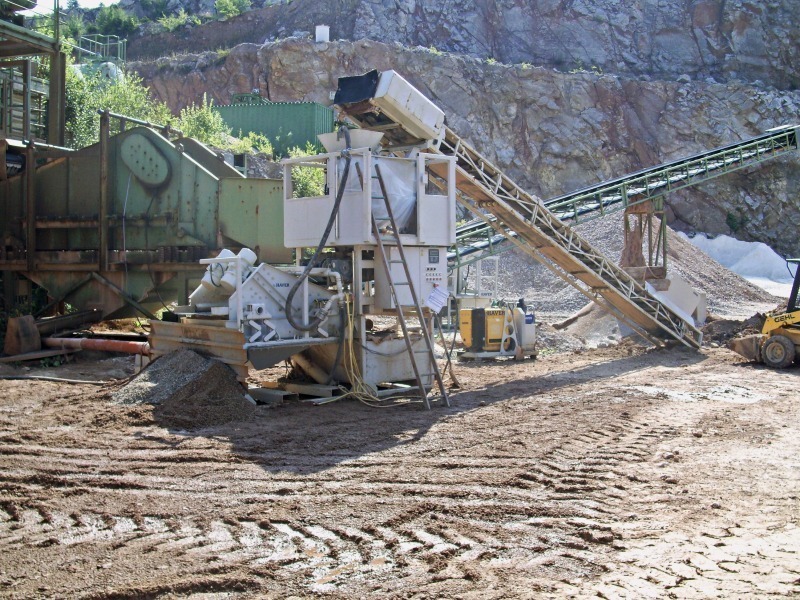

5 HAVER Friction-Clean Pilotanlage • The HAVER Friction-Clean pilot installation

Quelle/Source: HAVER ENGINEERING GmbH

6 Entwicklung des Weissgrades während der Versuche • Plot of whiteness during the tests

Quelle/Source: HAVER ENGINEERING GmbH

7 Entwicklung des Gipsgehaltes während der Versuche • Plot of gypsum content during the tests

Quelle/Source: HAVER ENGINEERING GmbH

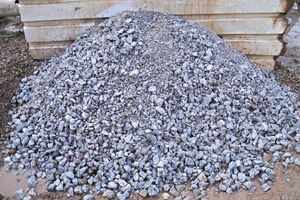

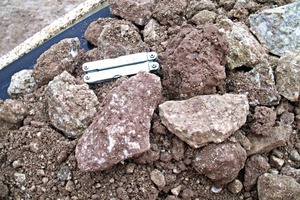

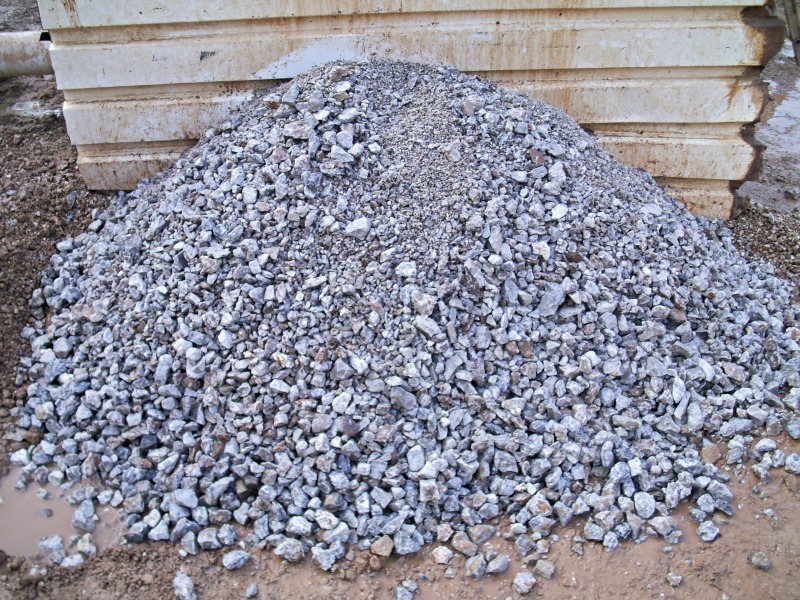

8 Aufgabematerial (oben) und Fertigprodukt (unten) im Vergleich • Comparison of feed material (above) and finished product (below)

Quelle/Source: HAVER ENGINEERING GmbH

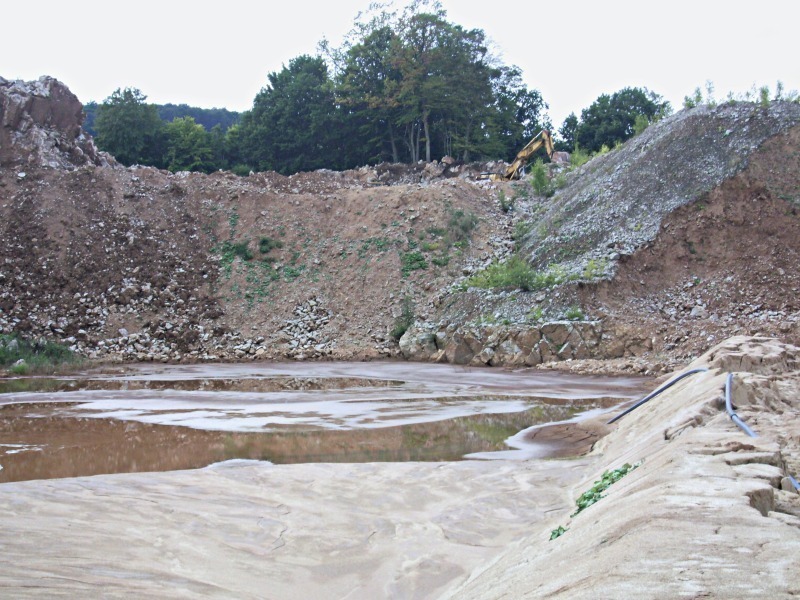

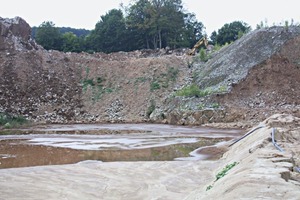

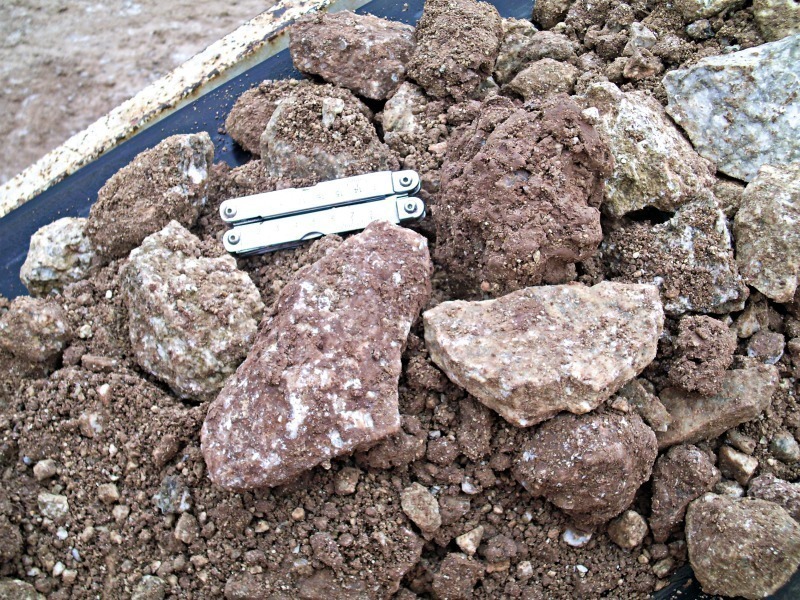

1 Haldenmaterial im Steinbruch Dorste • Spoil heap material at the Dorste quarry

Quelle/Source: HAVER ENGINEERING GmbH

Summary: HAVER ENGINEERING GmbH, of Freiberg, is a subsidiary of HAVER & BOECKER OHG. The company’s activities comprise machine and process development, and also machine/system auditing. New elements in its portfolio include custom-tailored specialist training courses in mineral processing and the operation of HAVER systems on the basis of Build – Operate – Transfer (BOT) models. The following article first appeared as a Paper presented at the Comminution And Screening symposium at the Institute for Mineral Processing Machines of the TU Bergakademie Freiberg on 6 March 2015, and focuses on the HAVER Friction-Clean, a recently developed machine for removal of poorly soluble impurities. Initial experience in the processing of raw gypsum using the HAVER Friction-Clean pilot installation at Rump & Salzmann’s Dorste quarry is also reported.

1 Introduction

Approval processes for new and expanded quarries are extremely lengthy, complicated and costly. It is therefore in the quarry operator’s interests to exploit to the full his existing deposits, and to also process “inferior” grades. A further potential for extending the productive life of quarries can also be found in the excavation and preparation of spoil heaps, with the aim of routing the useable materials (“values”) which they contain for rational economic utilisation.

Rump & Salzmann operates a gypsum quarry in southern Lower Saxony, and has been applying this procedure...
